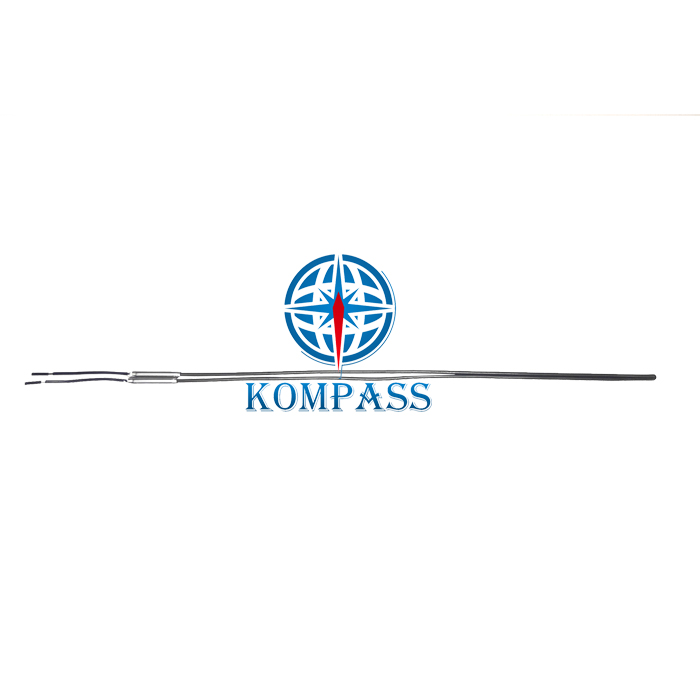

1.8mm Straight Heaters
single end or double ends optional
The heaters are soft to be bent accoring to your requirements
The surface is dark green or sand blasted
Reliable quality and long working life
Technical Details
Outer sheath material: High quality 304SS or 316L
Inside magnesium oxide insulation material: 99.99% high purity magnesium
Heating element: high durance and high temperature NiCr2080 heating elements from Germany
Max working temperature: 500 Celcious degree
High voltage with standing test:
Less than 0.5mA leak under 1000V for 30 seconds
Cross sections optional: 1.8mm, 2.2x1.3mm, 2mm,
The range of the length of heated length: 300mm----1500mm
Max. Power density: 9w/cm²
Length of unheated zone : 40mm standard
Dimensions of cold zone adaptor
4x30mm Double ends small adaptor
8x30mm Single end Standard adaptor |
