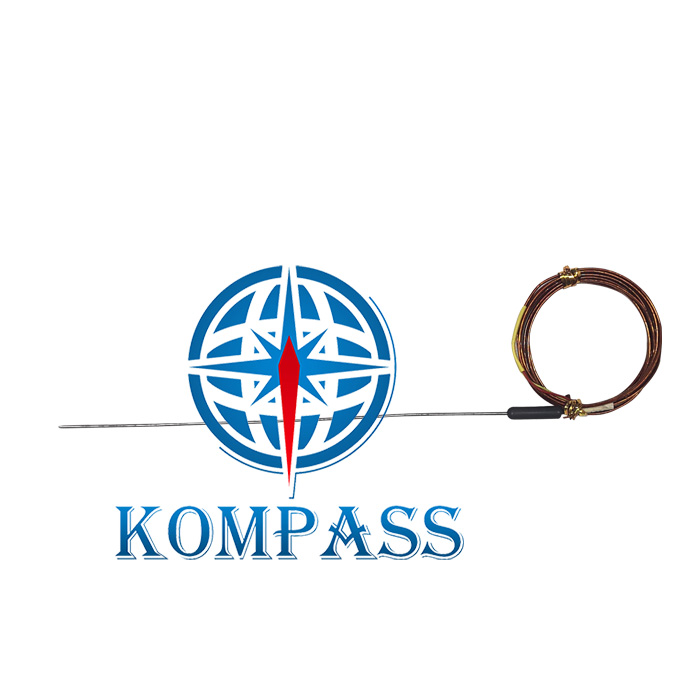

1.5mm Thermocouples
High temperature fiberglass wire or Kapton wire optional
Stainless steel or high temperature plastic adaptor
1m wire standard
Technical Specifications
Type optional: J, K, E, T
Diameter for Options: 1.0mm 1.5mm,2mm
Sheath Material: 304SS or 310SS
Maximal Testing temperature：400C
Sensor style options: ungrounded is standard, grounded is optional
Accuracy: 正负2.5C
High voltage with standing test:
Less than 0.5mA leak under 400V for 30 seconds
Adaptor size
Fiberglass with ss shield wire adaptor size 6x30mm
For Kapton wire adaptor size 4x20mm
Adaptor can stand the max. temperature: 400C
|
