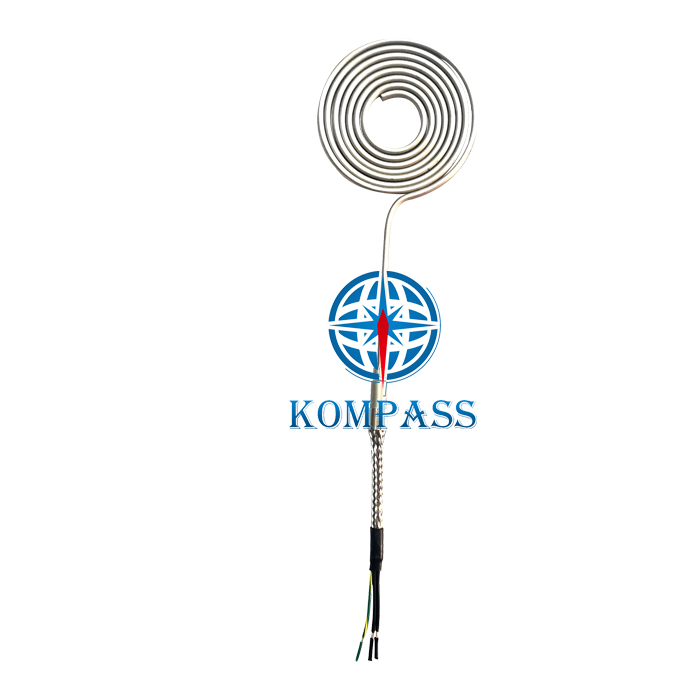

ID22x75mm, 110V 350W（内径22-26之间）
内径尺寸可根据用户需要定制
可带测温热电偶J或K型
发热丝截面3X3，3.5mm, 3mm可选
技术细则
Technical Specifications
外壳材料：304SS, 316L
Sheath material: 304SS or 316L
最高工作温度:
Max working temperature: 700℃
耐压测试标准：1000V高压测试30秒，漏电电流小于0.5mA
High voltage stability test:
Less than 0.5mA leak under 1000V for 30 seconds
可绕制内径范围: 8mm至40mm
ID available: 8mm to 40mm
外径范围: 20mm至100mm
Coil OD available: 20mm to 100mm
圈内径公差: +0.5mm; -0
ID tolerance: +0.5mm; -0
电压范围: 12V至440V
Range of working voltage: 12V to 440V
功率范围：5W to 1000W
Power range: 5W to 1000W
功率公差: +5% and -10%
Power Tolerance: +5% and -10%
工作寿命: 400℃以下1万小时;700度2千小时
Working life: 10,000 hours under less than 400℃ minus and 2000 hours at 700℃
热电偶: J型和K型可选
TC optional: type J and K
测温公差: ±10℃
TC Tolerance: ±10℃
表面处理: 银白色喷砂处理或者发黑处理
Surface treatment: Silver sandblasted or black
Lead and sleeve: Please refer to page 9
插头连接器,温控选择：按客户要求定做
Plugs, Connectors and temperature controller Available: According to requirements |
