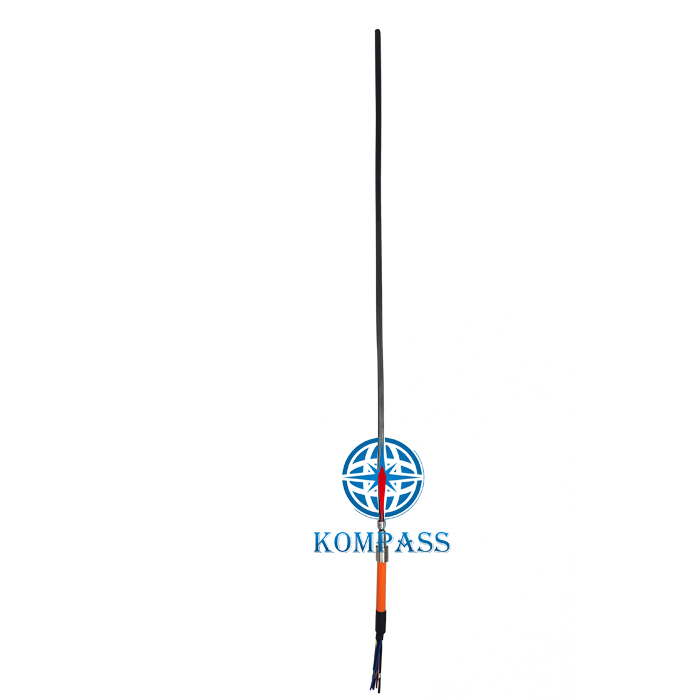

4.2x2.2mm 直条加热器

4.2x2.2mm 直条加热器红色皮管护套

截面公差：正负0.02mm

表面颜色为墨绿色或者喷砂银白色

可带J，K型热电偶

1米标准引线长度

技术细则

Technical Specifications

外管材质： 优质304SS或316L

Outer sheath material: High quality 304SS or 316L

内部填充氧化镁粉材料： 美国进口高纯度氧化镁

Inside magnesium oxide insulation material:high purity MgO tube

发热丝：德国进口高强度，耐高温镍铬2080 电热丝

Heating element: high durance and high temperature NiCr2080 heating elements from Germany

热电偶丝材：高精度热电偶测温丝材, 温度允差±5C

TC material: High quality TC elements to ensure ±5℃tolerance

最高工作温度: 700C

Max. working temperature: 700C

耐压测试标准：1000V高压测试30秒，漏电电流小于0.5mA

High voltage stability test:

Less than 0.5mA leak under 1000V for 30 seconds

截面尺寸和规格

Cross sections optional:

4x4mm, 3.5x3.5mm, 3.3x3.3mm, 3x3mm, 4.2x2.7mm, 4.2x2.5mm, 4.2x2.2mm, 4x2mm

发热条长度范围: 100mm----4000mm

The range of the heated length: 100mm----4000mm

最高功率密度: 9w/cm²

Maximum power density: 9w/cm²

不发热区长度标准：标准长度50mm, 可定制范围 15mm-300mm

Cold zone length: 50mm standard, and other sizes available

冷区和线转换接头尺寸: 8x30mm, 6.35x25mm可选

Dimensions of cold zone adaptor: 8x30mm and 6.35x25mm optional

标准出线: 1000mm高温铁氟龙线耐温300C以上

Standard leads: 1000mm black Teflon wire over 300C
